Aprašymas: |
dydis 45x37x13mm; svoris < 95g
Specification
Antenna
Frequency: 1575.42+2 MHz
VSWR: 1.5 Max.
Bandwidth: 10 MHz Min.
Axial Ratio: 3 dB Typical
Impedance: 50
Peak Gain: 4 dBic Min.
Gain Coverage: > -4dBic at -90°~ 90°(over 75% volume)
Power Handling: 1 watt
Polarization: RHCP
Amplifier Module
Amplifier Gain without cable: 27 dB Typical
Noise Figure: 1.5 dB Typical
Filtering: -25 dB (+ 100MHz)
Output VSWR: 2.0 Max.
Voltage: DC 3.0 ~ 5.0V
Current: 22mA Max@5VDC
Mechanical
Weight: < 95 gram
Size: 45 x 37 x 13 mm
Cable: RG174 with 5 meter long

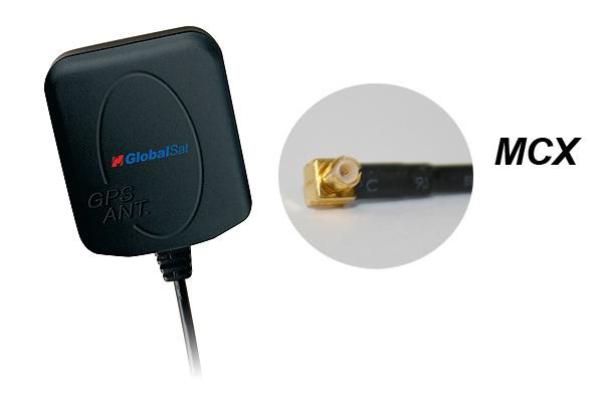

Connector: BNC/MCX/SMA/others
Mounting: Magnetic base
Environmental
Operating Temperature: - 40°C ~ + 85°C
Storage Temperature: - 40°C ~ + 85°C
Water Resistance: 100% waterproof
Vibration: Sine Sweep, 1G(0-P),10-150-10Hz each axis |
